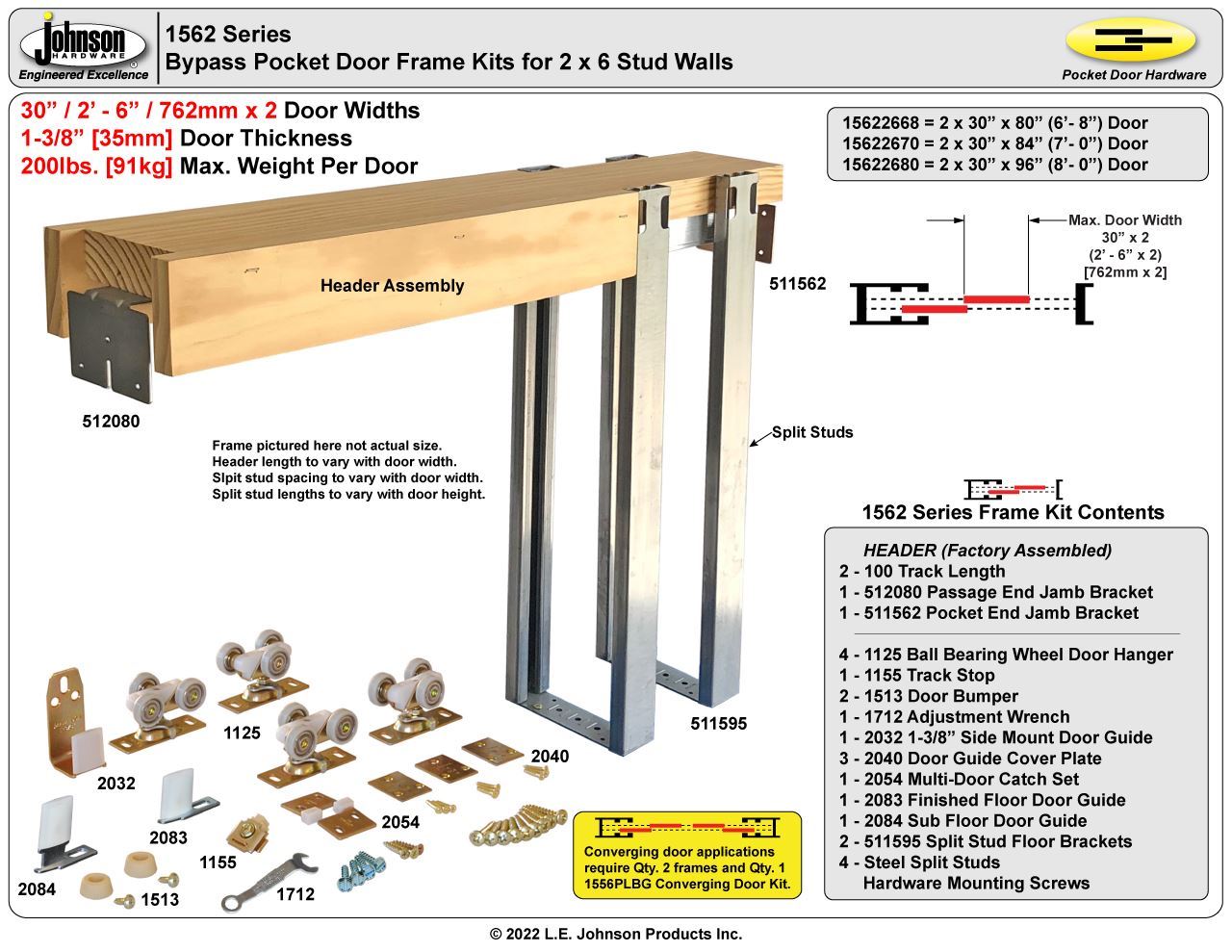

Products specifications
| Max. Weight Per Door | 200lbs. [91kg] |
| Door Width | 30" x 2 (2'- 6" x 2) [762mm x 2] |
| Door Opening Width | 58-3/4" [1524mm] |
| Max. Door Height | 96" (8'-0") [2438mm] |
| Door Thickness | 1-3/8" x 2 [35mm x 2] |
| Min. Wall Structure Thickness | 5-1/2" (2 x 6) [140mm] |
Related Products
15316205 1562 PARTS BAG
$105.29
1562 Part Set for 1-3/8" Doors
15316201 1562 HEADER BAG
$50.34
Hardware Bag Stapled to 1562 Header When Shipped From Factory
1556PLBG 1562 CONVERGING DOOR KIT
$10.80
Converging Door Kit for 1562 Series Bypass Pocket Door Frame1562 Compatible Frame Series The 1556PLBG Converging Door Kit joins 2 1562 Bypass Pocket Door Frame Headers together allowing for 2 door (converging) pocket door installations.
1121 1120/1125 DOOR PLATE W/SC
$2.36
1125 HANGER BALL BRG W/SCREWS
$14.14
1155 STOP BULK
$1.82
Track Stop for 100, 111, 134F, 138F and 2610F Series Track
1513 BUMPER BULK W/SCREW
$0.39
Sliding Door Bumper
1712 WRENCH BULK
$0.57
Adjustment Wrench
2032 1 3/8" SM BTM GUIDE W/SCR
$5.65
Side Mount 1-3/8" Door Guide
2040 ROUTED GROOVE COVER W/SCR
$3.35
Plate used to cover guide grooves routed in door bottom.
511588 HEADER BRKT PASSAGE END
$1.86
Passage End Pocket Door Header Bracket for DISCONTINUED WOOD STUD 1500PF Series Frames.
511562 1562 HDR BRKT PCKT END
$3.52
1562 Series Pocket Door Frame Header Bracket, Pocket End
100 Series Track
From $15.05
Auto-Latching Pocket Door Locks
From $10.20
Pocket Door Lock Installation Instructions
